RSoC: GDB for Redox - part 0

By jD91mZM2 on

GDB Crash

We’re here. The moment you’ve all been waiting for, the end of our journey is at hand.

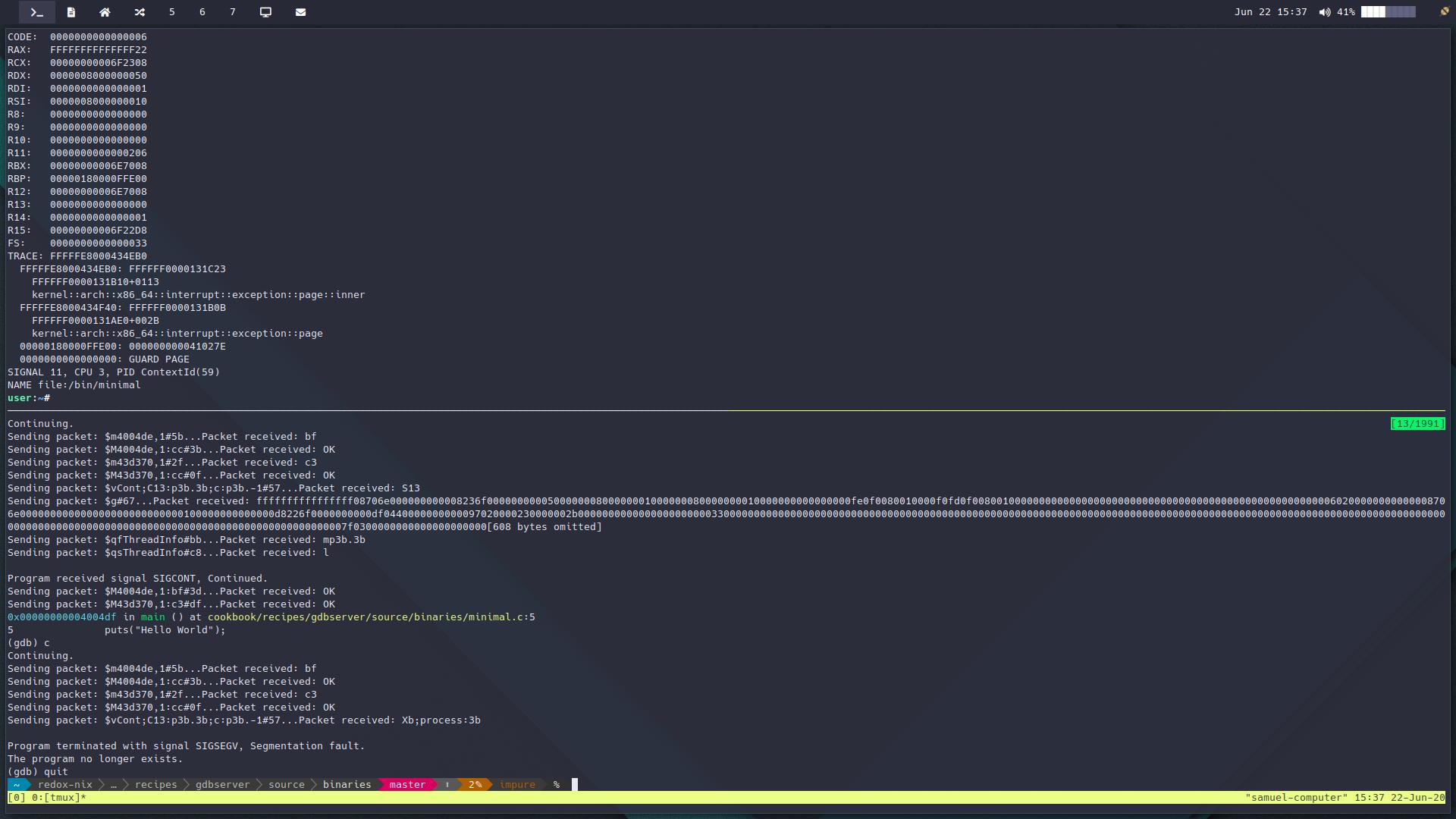

No, not really. I’m somewhat exaggerating. What you’re seeing in this picture is actually a crash, and stuff doesn’t work at all. Let’s back up. How did we get here?


As you might know, last year I spent the summer implementing a ptrace-alternative for Redox OS. It’s a powerful system where the tracing is done using a file handle. You can read all about the design over at the RFC. Thanks to this system I also got strace working, and then I started working on a simple gdbserver in Rust, for both Linux and Redox, but mainly Linux at that point, to lay the foundation for debugging on Redox using a Rust-based program.

This week, I’ve been using the remnants of last year to work on porting this debugging server to Redox. To do this, I had to make some more changes to the kernel side of things.

Changes to ptrace

Write should not wait

The first change, I did because the write system call has been used in the previous ptrace implementation to wait for an event to happen, only to later be read from an event queue. This lead to some funkiness around the PTRACE_FLAG_WAIT flag - mainly it did multiple things. Now it’s deleted all together :)


tracer.write(&[PTRACE_FLAG_WAIT]); // blocks until event

let mut event = Event {}; event); // reads event


let mut event = Event {}; event); // blocks & reads event

Read executable name

The GDB server needed to be able to read a process’ executable name, which wasn’t possible in Redox. A process could read its own info using sys:/exe, but it couldn’t read another’s executable name. I talked to Jeremy Soller (the BDFL), and we decided that I should implement a virtual file called proc:<pid>/exe (similar to /proc/<pid>/exe in Linux) and read from that. So I did. And it works :D

Pause on fexec

So, this change I’m not actually sure about. But from what I could tell, a debugger should be able to control the process before it actually starts. So I implemented a stop breakpoint PTRACE_STOP_EXEC to stop on the end of the fexec syscall, with registers of the new executable, right before switching to it. The implementation was quite difficult because switching to usermode wasn’t done using the traditional interrupt workflow (maybe I should fix that?), but rather using some assembly code that cleaned all registers and returned to userspace. This means I had to sort of pretend there was a stack there before letting ptrace expose the registers to the tracer.

Current state

With these ptrace changes, I was able to start porting my simple gdbserver to Redox. It went mostly painlessly, but it’s still not working great. I can do basic breakpoint setting and continuing, but it seems like the underlying process crashes at some points, and I really don’t know why. Perhaps I need to strace the gdbserver…

That’s this week. See you after the next!
